Your door must be closed. Put the battery in the engine. You now have 30 seconds to calibrate by following the procedure below

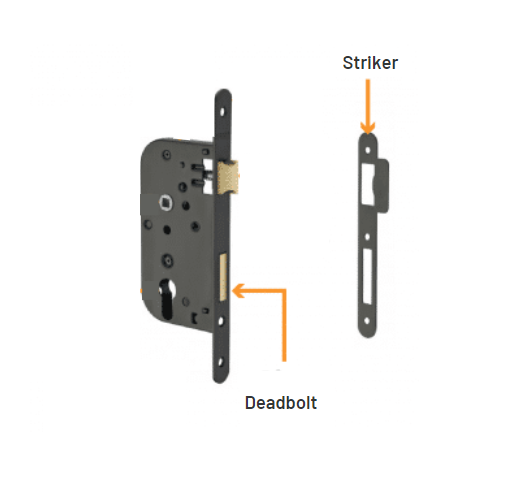

| TO KNOW: you will manually lock and unlock your lock to adjust the stops. During this step be careful not to turn the lock fully. Stop turning as soon as the deadbolt is sufficiently engaged in the striker. |
- Press 3sec on the center button.
- Position the lock in a locked position. Choose to turn the lock a turn or two but stop turning before the knob locks.
- Validate by pressing 3sec on the center button. You'll hear a Confirmation Beep.
- Position the lock in an unlocked position.
- To finalize your calibration, follow one of the operations below depending on whether or not a handle is outside the door.
A - You have an EXTERIOR HANDLE
The motor only locks and unlocks the door, the opening is done using the handle. Press 3s and release after the first beep.
B - NO OUTSIDE HANDLE
The motor locks, unlocks and opens the door by retracting the latch for 3s. Press for 5s and release after the first beep.
Finally, the motor performs several cycles to confirm the settings. A white LED indicates the success of the procedure. In case of failure, please repeat the procedure from the beginning.
